Bombas Solares Lorentz - PS 150 Boost
Lorentz PS 150 Boost
>>>>
Lorentz PS 150 Boost
Resumen
* Altura de transporte hasta 140 m
* Caudal hasta 0,9 m3/h
* Instalación sencilla
* Sin mantenimiento
* Alta precisión y larga duración
* Gran rentabilidad, centrifugas verticales
desplazamiento positivo
* Dos años de garantía por defectos de fabricación
Aplicaciones
* Abastecimiento de agua potable
* Agua para animales
* Control de estanques
* Riego
* etc.
*
*
*
*
*
*
*
*
*
* *
*
* *
Characteristics
flow rate up to 0.9 m 3/h
lift up to 140 m
same performance for 12 and 24 V DC
handles sea water, dissolved minerals
maintenance-free
excellent efficiency thanks to modern brushless DC motor technology
Application
water pressurising
drinking water supply
livestock watering
pond management
irrigation
filtration
etc.
Features
rotary vane mechanism (positive displacement), made of forged
brass, carbon-graphite and stainless steel
brushless DC motor
solar operation: MPP tracking, current booster for solar direct
applications, pump speed control , low voltage disconnect for battery
protection, terminals for float/remote switch and low water probe
PV-direct (Non-battery) operation requirement: rated power of PV
module must exceed pump watts by 20 % or more. Voc 50 V DC
12/24 V DC battery charger included
suction capacity: 5 m/20 ft
horizontal or vertical mounting
cannot tolerate dirt, water must be filtered clear
must not be submerged
Accessories
inline filter (10 in), standard filter cartridge
installation kit: Pressure switch, pressure gauge, check, drain and
shut-off valves, tank tee
float switch for tank shut off if full
well probe sensor to protect pump from dry-running
*
* *
*
*
*
*
*
*
*
*
*
*
Performance Chart PV or battery, 12 V or 24 V*
PS150 Boost 60
0,26
140
PS150 Boost 125
0,48
90
PS150 Boost 240
0,90
45
Max. flow rate [m3/h]
Max. vertical lift [m]

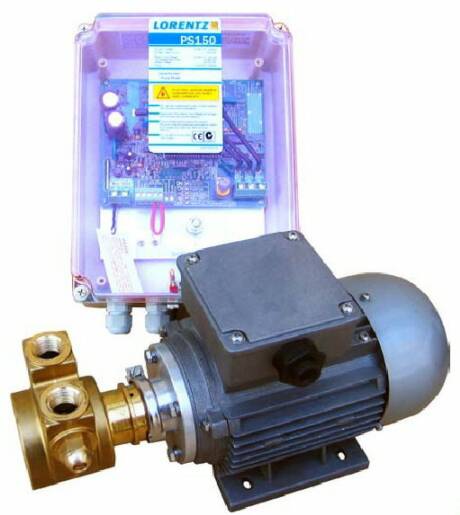

Lorentz PS150 Booster
